Custom Machining Planing Service with ±0.01-0.005mm Tolerance for Large-scale Machining and Ra 0.8-3.2 Surface Roughness

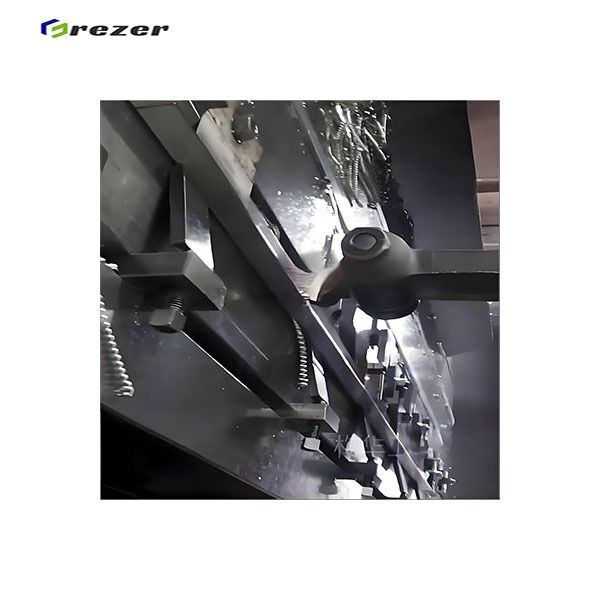

Planing is a classic subtractive machining process characterized by linear relative motion between a single-point cutting tool and a workpiece. In this operation, the workpiece is securely clamped on a reciprocating table that moves in a straight path, while the stationary tool progressively removes material during each forward stroke. This method is exceptionally effective for generating flat surfaces, longitudinal grooves, and angular profiles on large-scale components that are often challenging to process with rotary cutting methods.

The core advantages of planing are particularly evident in heavy industry applications:

• Large-scale machining capability: Planing machines can accommodate workpieces weighing several tons with dimensions exceeding 10 meters in length. This makes them indispensable for manufacturing industrial equipment bases, marine engine blocks, and massive structural components that exceed the capacity of standard milling setups.
• Superior stability for heavy cuts: The linear cutting mechanics allow for deeper cuts (up to 10-15mm per pass) with exceptional stability, minimizing vibration even when machining uneven cast surfaces or welded structures. This results in more consistent surface quality across extensive work areas.
• Economic efficiency: For wide surface machining exceeding 2-meter widths, planing demonstrates significantly lower tooling costs compared to milling. The simple single-point tools are not only inexpensive but also easily reground, reducing consumable expenses by 40-60% versus specialized milling cutters.
• Adaptable precision control: Through adjustable tool geometry and customized tool holders, operators can achieve precise dimensional control (IT8-IT10 grades) while maintaining surface roughness between Ra 1.6-3.2 μm. The process allows real-time adjustments during operation—an advantage over programmed CNC processes when dealing with irregular stock allowances.
• Versatile configuration options: Modern planers integrate digital readout systems, automated tool positioning, and programmable feed mechanisms. These enhancements transform traditional machines into semi-automatic systems capable of producing dovetails, T-slots, and stepped contours with positional accuracy up to ±0.05 mm/m.
